YT-ZG Paper corner machine

1.Applicable to the corner

(width: 30-80mm; thickness:2.5-8mm; length 50-9000mm) manufacture.

2. The angle should be adjusted according to production speed angle length. The length is 50-100mm, its speed is 0-10m/min; the length is 100-9000mm, its speed is 0-40m/min.

3. Host motor for Shanghai strong speed (7.5kW), with adjustable speed function, easy to adjust the production speed.

4. This converter is NRG products, products for the domestic brands, the practical value is relatively high low failure rate and repair rate is small. The motor can be controlled by frequency conversion, so as to adjust the speed of the machine.

5 . Cut off the servo motor for the Swiss servo motor (4.3kw), this product in the industry for the international well-known brands. This motor has good stability, large torque, and its unique speed start and stop function, is undoubtedly the best product corner cut.

6. Linear guide for Taiwan silver, this product is the industry's top products. The utility model has the advantages of low noise, high linearity of the guide rail, no deformation, moderate gap, etc. the utility model has the advantages of durability, cutting and accurate size of the punching port.

7. Ball screw for the Taiwan TBI products, screw machining process fine, and silk mother with a moderate gap, no noise, smooth operation, long service life.

8. Cut off for the crankshaft transmission, at the same time finish the speed, cut off. Its unique transmission mode to solve a big problem corner of the industry, the leading position in the industry.

9. The synchronous control system PLC is the dimension control product. The system has fast response, accurate data processing, good stability and strong anti-interference ability. In particular, there is a unique advantage in rapid flying.

10. Man-machine interface for dimensional control products, this product is easy to understand, easy to adjust the data, easy to operate.

11. Operators can enter a number of orders through the man-machine interface size, is conducive to the completion of an order to automatically replace the next order, thereby reducing waste, to achieve the purpose of reducing production costs.

12. The main electrical components for the implementation of CHINT products, cylinder components for the Austrian products, these are well-known products in china. This product is durable, high practical value.

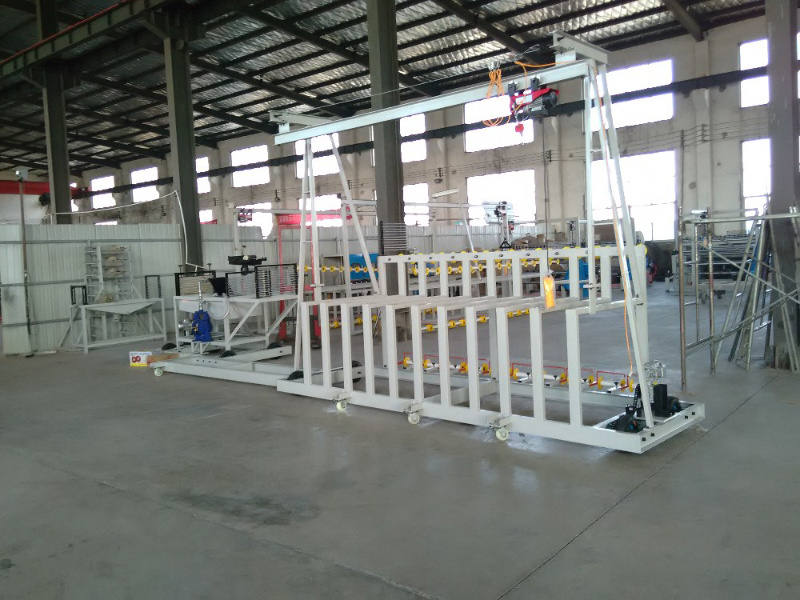

13. The upper part of the paper is a right angle lifting paper rack. The right angle paper rack saves space, the paper is smooth, the paper is electric, the operation is convenient, the labor is saved.

14. The independent glue feeding system is a pneumatic automatic gluing device for the diaphragm pump. The speed of glue supply can be controlled by adjusting the air pressure, and the method is simple and easy to operate.

15. The host for the five groups each group forming, forming device for pressing wheel depth can be accomplished by manually adjusting cylinder (cylinder is adjustable); pressure according to the thickness of the corner by a pressure regulating valve to control the operating mode are very simple.

16. Glue and glue disc for stainless steel products, has the corrosion resistance and wear resistance, greatly enhance the service life of rubber tank. Each layer of paper a separate tray to avoid glue easily broken paper, scraping rod for ladder type frictioning, also an important role to solve the problem of paper cutting.

17. Conveying device after cutting angle corner for bundling and transportation.
