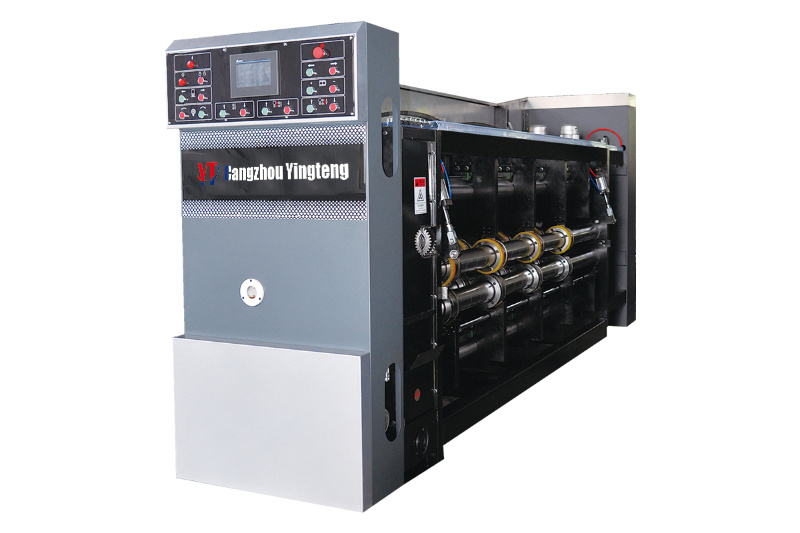

YT-A Inteligent high-speed ink printing slotting die cutting machine

Adopting advanced vacuum absorb lead edge feeding system, with stable high speed, easy operation and high accuracy.

Commodity name： YT-A Inteligent high-speed ink printing slotting die cutting machine

Category:

High Speed Ink Printing Sloting Die-cutting Machine

Email:

admin@czytmachine.com

Phone:

+86-15233174569

Get Quote

Also Like

Product Details

Function and characteristic

◆ Adopting advanced vacuum absorb lead edge feeding system, with stable high speed, easy operation and high accuracy.

◆ 7 inch color touch screen, pre-set 200 group orders, order inquires, zero-order input, synchronous zero, the automatic / manual adjustment of phase. management of the parameters, up and down the plate, auto/semi-auto inking, automatic display of the production and speed, and setting of the quantities.

◆ All the drive roller adopted high quality steel materials, hard chromium plating and the surface treated by lapping finish.The drive gears adopt high quality alloy steel, after heat treatment and lapping finish.Interval of all the roller is adjusted by high precise worm box.With three disk handle seat, convenient and swift.

◆ Motorized electric numerical adjust the Axial and vertical movement of the knife seat and height of the carton.

◆ Speed difference compensation system is equipped with Die cutting unit Axially conjunct moving of the cam type soft roller is 60mm, uniform wear and tear, raise the occupation of the gum cover, save the cost.

◆ Suitable for 3/5/7 layer corrugated paperboard, as well E flute paperboard.

◆ The phase is driven by servo motor to make the adjustment more rapid and accurate.

Technological parameter

Parameter	Unit	Model
Parameter	Unit	YT-922	YT-1224	YT-1426	YT-1628	YT-1828
Max. printing size	mm	900×2200	1200×2400	1400×2600	1600×2800	1800×2850
Max. paper size	mm	900×2300	1200×2500	1400×2700	1600×2900	1800×2950
Skipping feeding size	mm	1100×2300	1200×2500	1400×2700	1600×2900	1800×2950
Max. speed	pcclmin	300	220	200	180	150
Color precision	mm	±0.5	±0.5	±0.5	±0.5	±0.5
Standard plate thickness	mm	7.2	7.2	7.2	7.2	7.2
Cardboard thickness	mm	1.5-11	1.5-11	1.5-11	1.5-11	1.5-11
Min. slotting interval	mm	Normal 150×150	Normal 160×160	Normal 160×160	Normal 165×165	Normal 180×180
Min. slotting interval	mm	Reverse 220×80	Reverse 250×80	Reverse 260×80	Reverse 280×80	Reverse 280×80
Max. slotting depth	mm	230	300	350	400	450
Min. paper size	mm	240×430	320×430	350×430	420×430	450×600

Feeding unit

◆ Advanced leading edge paper feeding system, simple operation and high precision.
◆ Left and right baffle positions are electrically adjusted by the lead screw.
◆ Separate sheet feed function, you can choose to feed the sheet according to your needs, to ensure that larger size cardboard can also be processed.
◆ Install 7-inch true-color touch screen, automatic / manual adjustment of phase, machine parameter management, manual / automatic control of ink leveling of the lifting and lowering plates, automatic display of production quantity and production speed and setting production quantity.
◆ The back and forth paper holder is manually controlled before and after to speed up the setting speed.

Printing unit

◆ The reference line is engraved in the horizontal and circumferential directions of the roll body to facilitate plate alignment.
◆ The ratchet wheel fixed plate winding shaft hanging plate is equipped with left and right locking devices to make the plate hanging alignment faster and more accurate.
◆ Install a foot switch to control the positive and negative rotation of the plate loading drum for easy plate changing.
◆ The printing phase is driven by servo motor and adjusted by digital 360 °(both running and stopping can be adjusted).
◆ In order to ensure that the unit has a unified adjustment benchmark, the correct position can be adjusted by trial printing one sheet, so as to reduce the waste of paperboard.
◆ The pneumatic anilox roller automatic lifting device and idling device lower the anilox roller to contact the printing plate during paper feeding.
◆ The phase is driven by servo motor to make the adjustment speed more rapid and accurate.

Slotting unit

◆ All the carton size, box high phase completed by computer, human-machine interface, saving time and effort, improve work efficiency, can store 999 common orders.
◆ Uniaxial pole structure, pre-press, press twice better real pressure line, pressure line carton forming effect.
◆ Slot knife, creasing wheel, trimming knife sliding structure using precision ball screw, high precision movement, the upper and lower blade meet more accurate positioning effectively extend tool life.
◆ Elastic structure Cutaway knife and cut off three, five cardboard without adjustment.
◆ Slotting cutter made of high quality steel, heat treated grinding, hardness and toughness is superb, long service life.
◆ Necessary optional punch, fight hand-clasping means.

Clear waster paper and stacker unit

◆ Stacker height can be up to 1700mm.
◆ Platform lifting is driven by strong chain. Lifting motor with brake function, to maintain a fixed position without sliding.
◆ With the stacking of paperboard, the platform will lift automatically. When the paperboard is piled up to a predetermined height, the pneumatic lifting mechanism will automatically open to catch the paperboard and give an alarm when the paper is full.
◆ Safety protection device is installed to make the platform lifting under control and ensure the safety of the workers.
◆ Flat wrinkle climbing belt to prevent the cardboard from slipping.
