YT-HQ Full adsorb computer intelligent high-definition ink printing slotting and die-cutting machine
- Commodity name： YT-HQ Full adsorb computer intelligent high-definition ink printing slotting and die-cutting machine
- Product Details
-
Function and characteristic
◆ The whole line is designed and made for high quality,high speed,high efficiency,high stabiity and high safety,convenient for quick order update and operation.
◆ Made of high quality materials and parts.
◆ Well hardened and ground transmission gears with hardness more than 60(HRC).
◆ Auto zero return and auto reset.
◆ All gaps between cylinders and roller are computerized or motorized adjustment.Vacuum transfer system for all printers.
◆ Key-free connection rings to reduce central wear to keep stable precise printing.
◆ All cylinders and rollers are hard chromed for idea hardness.
◆ Use imported PLC. touch screen for multifunctional control.
◆ Able to save daily orders to speed up the order update.
◆ All electric, electronic and pneumatic components are of european standards.
Linkage down folding and gluing machine
◆ The folding belt adopts separate power, and each group of belts has a motor to drive the belt, which can prolong the service life of the belt and reduce the tension of the belt.
◆ The machine adopts anti-skid belt to transport the paperboard to ensure the stability and deviation correction function of the paperboard during operation.
◆ The folding part is equipped with three lines to compensate for the function of false line pressing of the printing press and solve the scissors difference of the paste box.
◆ The pasting head adopts roller gluing, and the lwata glue spraying device (imported from japan) can be selected.
◆ The computer automatically changes orders and automatically stores orders.
◆ The counting and discharging part adopts the falling paper feeding mode and the double beat function, so as to solve the problem of scissors difference of carton.
◆ The discharge part adopts the lifting hook type discharge, so the small paperboard collapses.
◆ The printing department and the pasting department can realize differential linkage, input the total width of the paperboard, and the gluing belt can automatically track to realize the spacing between the paperboard and the paperboard, with a minimum spacing of 5- 10cm, so as to reduce the belt speed, improve the pasting speed and reduce unnecessary belt wear.
Technical parameter
Model YT-HQ 920 YT-HQ 1224 YT-HQ 1228 Max.machine speed(pcs/min) 350 250 220 Max.feeding size 1200×2200 1200×2400 1200×2800 Min.feeding size 300 350 Min.fold size 240×110 250×110 Suitable for card board E-AB

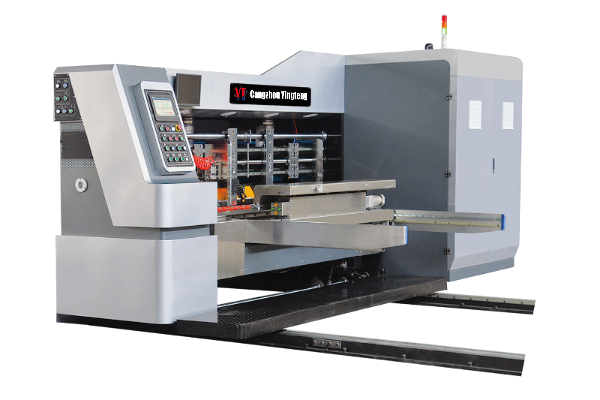

Feeding unit
◆ Electric machine clutch, with alarm, the road between the continuous ringing, ensure worker safety.
◆ Around the bezel, push the cardboard box after blocking position, with electric adjustment and computer numerical adjustment.
◆ Brush with wind suction dust removal device can remove a lot of cardboard printed surface impurities, improve print quality.
◆ Host variable frequency control, start, smooth operation, energy savings of 30%.
◆ Infrared photoelectric counter, the preset number of orders processed.
◆ Online total lock function to prevent misuse damage the machine (host starts, each unit is automatically locked).
◆ Choose continuous or skip feeding.
◆ Pneumatic elastic feed roller; do not undermine the strength of corrugated board; under the feed roller gin, hard chrome plating.

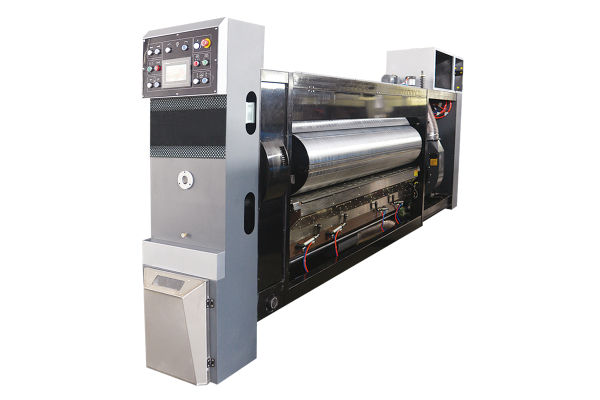

◆ Side fences and slotted portion FBl, there are trimming can be done with or without trimming adjustment, saving time and effort, and the installation of pneumatic beat togethermeans more accurate lateral positioning of cardboard to avoid waste.After the kick-type feeder or optional front feed.Printing unit
◆ All and roller are made of high quality steel, computer dynamic balance, eliminating centrfugal force, grinding, hard chrome plating.
◆ Printing phase using planetary gear mechanism, PLC touch screen control, and electric digital 360°adjustment.
◆ Roller sliding touch screen control, and electric digital adjustment, a total adjustment range 10mm.
◆ Ink monitoring system, low ink detector.
◆ Hanging devices are adopted, the full version and edition half hanging version trough, foot switch control rotating, plate loading and unloading quick and easy.
◆ Ink set gap, the printing press roller, guide rolier gap with fast spanner-free adjustment.
◆ Printing phase fixing adopts pneumatic brake mechanism, when the unit is separated from the host to limit rotation of the brake mechanism, keep the original gear fixed point position unchanged.
◆ Rubber roller, wear rubber wrapped steel pipe surface, high special grinding, good ink transfer effect.
◆ Steel roller, steel surface grinding, pressing textured, hard chrome plating (optional ceramic roller).
◆ Pneumatic lift version of the device, when the host is stopped, anilox automatically from the automatic uniform ink to prevent ink dry stagnation.

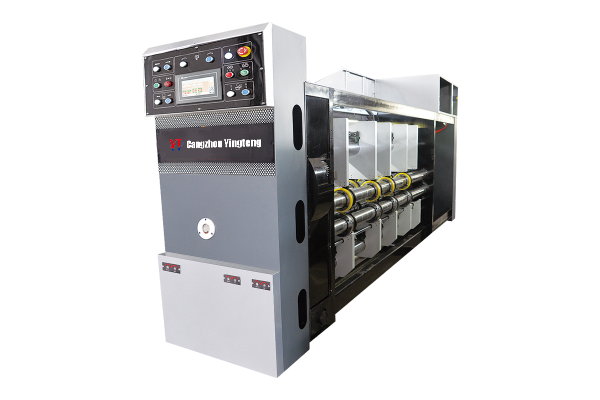

Slotting unit
◆ All the carton size, box high phase completed by computer, human-machine interface, saving time and effort, improve work efficiency, can store 999 common orders.
◆ Uniaxial pole structure, pre-press, press twice better real pressure line, pressure line carton forming effect.
◆ Slot knife, creasing wheel, trimming knife sliding structure using precision ball screw, high precision movement, the upper and lower blade meet more accurate positioning effectively extend tool life.
◆ Elastic structure Cutaway knife and cut off three, five cardboard without adjustment.
◆ Slotting cutter made of high quality steel, heat treated grinding, hardness and toughness is superb, long service life.

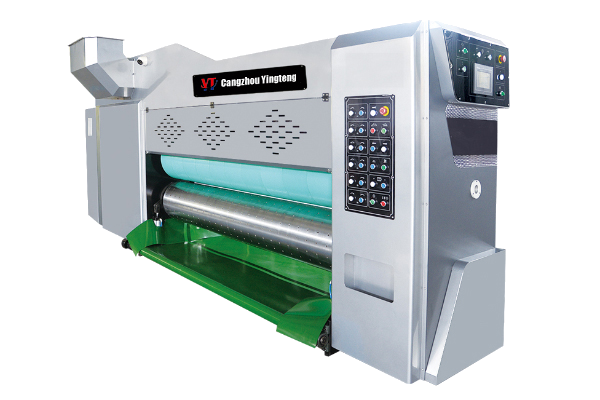

◆ Necessary optional punch, fight hand-clasping means.Die cutting unit
◆ Cuting knife phase, computer and electric digital control.
◆ Cutting knife horizontal adjustment, computer and electric digital control, control a total of 10mm.
◆ Cushion roll cutting Shuhei institutions, pads can be used repeatedly, the cost savings can be substantial.
◆ Cushion roll laterally ± 30mm swimming mechanical device to increase the die pad life.
◆ The die equalizer provides wire-speed compensation to ensure consistent size carton forming pad after repair.
