YT-B Automatic three colors ink printing slotting die cutting machine

This product can complete three-color printing,cutting,indentation,trimming,grooving,die cutting and other processess.Taiwan roll-wheel forward positioning automatic paper-feeding mechanism,air volume adjustable,mainframe frequency-conversion vontrol.
  • Commodity name： YT-B Automatic three colors ink printing slotting die cutting machine

Category:

High Speed Ink Printing Sloting Die-cutting Machine

Email:

admin@czytmachine.com

Phone:

+86-15233174569

Get Quote
Also Like
  • Product Details

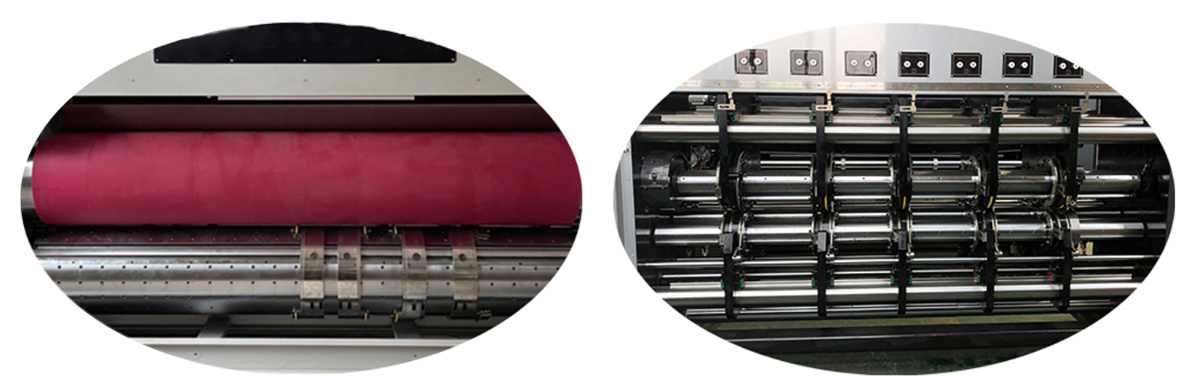

  • Main mechanical characteristics

    This product can complete three-color printing,cutting,indentation,trimming,grooving,die cutting and other processess.Taiwan roll-wheel forward positioning automatic paper-feeding mechanism,air volume adjustable,mainframe frequency-conversion vontrol.This machine adopts PLC and color display screen to control the machine,which is convenient,fast and flexible.Phase adjustment through digital display electric adjustment,automatic return to zero,automativ reset;transmission gear using 20Cr high quality alloy steel,Carburizing quenching material,grinding processing;main transmission gear and transmission shaft using the way of tight and non-key connection,so that the virtual position amplification,The wear of the center was removed,so that the printing press remained long-lived.Overprinter accuracy;the whole machine adopts electric split-close,pneumatic lock,single machine close,overprinter not to move;this machine has the features of accurate coloring,fine printing pattern,convenient use and maintenance,high automation and so on.

    Technological parameter

    ParameterUnitModel
    YT-B 922YT-B 1224YT-B 1426YT-B 1628YT-B 1828
    Max. paper sizemm900×23001200×25001400×27001600×29001800×2950
    Max. printing sizemm900×22001200×24001400×26001600×28001800×2850
    Skipping feeding sizemm1100×23001200×25001400×27001600×29001800×2950
    Max. speedmm300220200180150
    Topping precisionPcs/min±0.5±0.5±0.5±0.5±0.5
    Standard plate
    thickness    		mm7.27.27.27.27.2
    Cardboard thicknessmm1.5-111.5-111.5-111.5-111.5-11
      Min. slotting interval  mmNormal
    150×150    		Normal
    160×160    		Normal
    160×160    		Normal
    165×165    		Normal
    180×180
    Reverse
    220×80    		Reverse
    250×80    		Reverse
    260×80    		Reverse
    280×80    		Reverse
    280×80
    Max. slotting depthmm230300350400450
    Min. paper sizemm240×430320×430350×430420×430450×600
